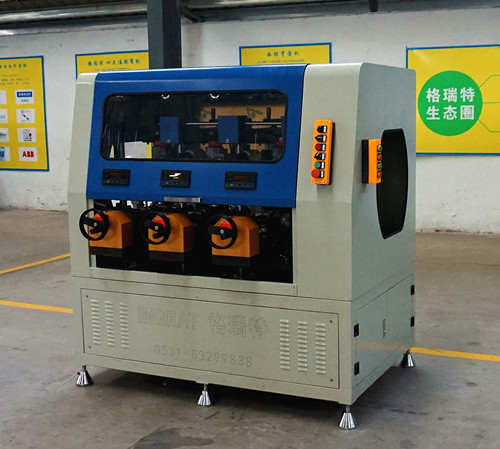

This thermal break aluminum profile rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make thermal break aluminum profile. Hardened rolling discs are used to press the knurled profile and thermal barrier strip or plastic profile together, to make a composite profile that has great insulation effect.
Features:
1, Six sets of hardened rolling discs and rubber roller are electrically controlled for fast change of profiles.
2, Six sets of rolling discs controlled by separate driving force guarantee stable rolling, high speed, and high efficiency.
3, Vertical and horizontal distance between each pair of rolling discs is adjustable for different sizes of profiles.
4, Step-less speed regulation. Taiwan HIWIN linear rail, Schneider electrical appliance, and precision screws are adopted.
Technical data:
|
Model |
GYJ-01 |
|
Power supply |
380V/50Hz |
|
Total power |
4.73Kw |
|
Two-axis electric control |
Rolling discs and upper rubber rollers |
|
Rolling disc diameter |
240mm |
|
Two rolling discs(one pair) distance |
0-50mm |
|
Rolling disc height regulating range |
0-80mm |
|
Max rolled section |
170x230mm (WxH) |
|
Rolling speed |
0-60m/min |
|
Overall dimension |
1550x1270x1560mm |
|
Weight
thermal break machine |
1300kg
|
